arrived

•22/03/2014 • Leave a Comment

17th c boteh publishableWith some small modifications and discrepancies, I would like to unveil my re-creation of a beautiful 17th-century Kashmir shawl motif, a sprig of columbine flowers (aquilegia).

design drafting from an antique fabric

•18/03/2014 • Leave a Comment

Rizvi 5-1 sample right - draft comparison jpgThe illustration above shows one of two copies of the 17th-century boteh motif in my source, Plate 5-1 from “Pashmina: The Kashmir Shawl and Beyond” by Janet Rizvi with Monisha Ahmed (Marg Publications, Mumbai, 2009, p. 76, photo by Dilip Kumar), compared with the diagram I drafted of it using Stitch Painter software.  Of the two copies of the motif in the photograph, it is slightly lighter and easier to read, second from the lefthand edge of the fabric in a row of at least 3 copies (seen in another published source).  I made overall adjustments to the scale and aspect ratio of my diagram to match the photograph, just as in weaving these proportions would be subject to the size of the yarns used and the balance of warp and weft densities.  In the diagram, where every two weft stitches is represented by a solid oblong “brick” of colour, the appearance of the horizontal dimension is exaggerated.
In this long, technical article I want to describe both the basic process of drafting a fabric motif using Stitch Painter, along with difficulties encountered in this particular example that might well crop up elsewhere.
Comparing the two copies of the motif in Plate 5-1 shows a high degree of similarity based on repeated design information, not just visual resemblance.  Woven side by side, probably by the same hand, each weft pick from edge to edge of the fabric would contain the same sequence of colour changes for each copy.  Whether this was based on a diagram, a series of instructions in text, or some other method of memorization, is hard to say – I have seen just one citation about the invention of the “talim” or text-based method, dating it to the 18th century.  On the other hand, there are many irregularities between and within the woven copies, and between and within yarn colours, that may be due to uneven thicknesses of the very fine handspun pashmina yarn.  No information was given about the dimensions or threadcount of the original fabric.  The angle, closeness, and linearity of the twill-weave texture – the delicate, diagonal ridges formed by the progression of treadlings – is very wavey and irregular.  All these variations make it hard to estimate the number of rows and columns used to represent design details, all the more necessary to see the individual stitches.  I found the balance of the weave is short, more weft picks per inch than warp ends, tending to compress and flatten the imagery.
What inspired me to attempt a reconstruction of this shawl design, the particular image I had seen before and representative of a favourite era of faithful botanical portraits, was the large scale and sharp lighting of the printed photograph.  It’s large and detailed enough to see the fabric texture, and it shows well on the page, though in close analysis the angled lighting may have caused problems interpreting highlight and shadow in the light and dark yarn colours, that flat lighting would have made easier.  However good this reconstruction may be, being given an opportunity to take original photographs for the purpose, would prompt a comprehensive revision.
The strategy I’ve used before, for beginning to draft a design made up of many components and less important interconnections, is to draft each component by itself and then assemble the parts.  The first step is to define the height and width of a component area by cropping it from the source photograph, because that will correspond to the number of rows and columns of the Stitch Painter grid it will be pasted to.  Though I could assume that the vertical or warp-wise dimension of the fabric was plumb, in my first attempts I struggled to draft details that I felt sure followed the horizontal line of the weft pick, but were slanted in the photo.  This could easily happen when the fabric was laid out to be photographed, but would show up mis-aligned on the rigid Stitch Painter grid.  It reminded me of my experience with early Optical Character Recognition software, where if the text was not perfectly horizontal when scanned, the OCR function made many more errors interpreting the letters.  Therefore, I manipulated the cropped photo to try to restore it plumb and square using the “skew” feature of my photo-editing program.
Then to estimate the size of the grid area required, I made several traverses of the photo both vertically and horizontally, quickly counting the number of diagonal twill ridges crossed from edge to edge.  Not as easy as it sounds, but rather than try to get one count absolutely right, I made several and averaged them.  The number of ridges crossed horizontally is the number of grid units of width, while each ridge crossed vertically calls for two rows of grid height.  The twill ridge is produced by the weave unit made up of 4 warp threads and 4 weft threads, but each oblong “brick” unit of the Stitch Painter grid represents 4 warp threads (2 raised and 2 lowered) and only 2 weft threads.  Readers of my previous articles will recognize this is because the design instructions to the weaver, corresponding to a row of grid units, change for every 2 weft picks, not just every 4 weft picks.

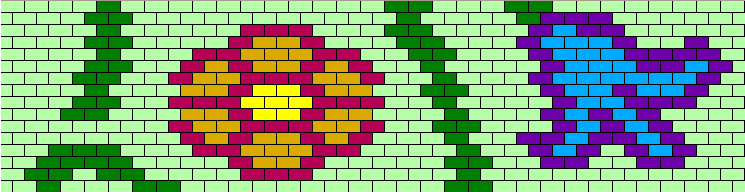

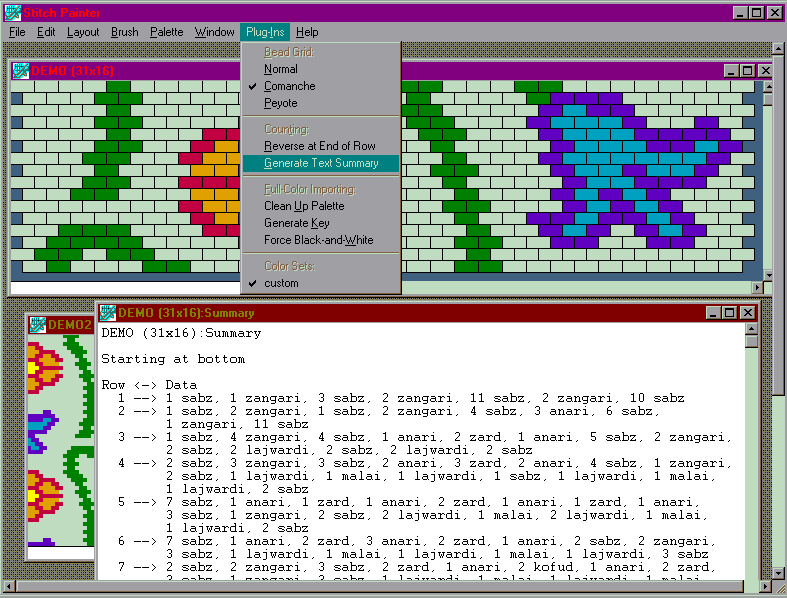

From this point on, I am primarily working in the Stitch Painter program, accessorized with both the “Beading” module which provides the “brick” grid (“Comanche”) that I’ve found uniquely useful for this process as well as a “half-drop” (“Peyote”) grid, and the “Full Colour Import” module.  It was described as a “grid-based paint program” by Ingrid Boesel, the weaver who pointed it out to me, and is available from the developers at cochenille.com.
From the estimate of the grid area I need for the component I will work on, I “Set Document Size” a few rows and columns larger.  I copy-and-paste the photo image onto selected grid areas in several trials: as counted, slightly larger and smaller, even and odd numbers of rows and columns, beginning on whole or half-unit rows – looking for the clearest rendering of the design in the photo, and checking for a corresponding number of units in linear details of the photo and the grid.  In theory, an error of one row or column, the difference of odd or even, will disrupt even the center of the design area.  I use greater rather than fewer number of colours in the paste process, waiting to make corrections by eye instead of forcing the software to make sharp decisions about subtle details.
19 screen viewTo begin the process of hand-corrections, I set up a working screen view of Stitch Painter grid and original photo side-by-side, such as this one from an earlier project.  I draw in corrections in a contrasting colour, beginning with the most clearly visible details and ranging out and around from there.  I keep criss-crossing the design area connecting, adjusting, counting twill ridges and units in straight-line details, trying to accommodate all the evidence of how the design was woven.  The design may mesh easily, or any correction to one area may distort another.  I try not to erase background details of the paste process before they are incorporated in the corrected version, and don’t fill areas or simplify clutter until the outlines are finalized.
Once I have prepared the individual components, I’m ready to begin combining separate design files on one larger grid.  Now is the time to get rid the stray colours left over from the paste process, and standardize the colours I’m using in the same palette positions in all component designs, to copy-and-paste them together.  I piece together component designs carefully for correct placement and proportions.  Accurate as they may have seemed individually, they may suddenly appear out of proportion to their neighbours or space available.  Sometimes this coordination goes surprisingly well: to fill in a missing area of complicated stems and foliage, I decided to copy-and-paste the relevant portion of the photograph, estimating the grid space by eye instead of painstaking counting, and it fell neatly into place.
In view of uncertainties of transcription encountered so far, I made some general decisions verging on artistic license: I determined that lines (stems) and outlines, variable as they appeared due to yarn size, should be no more than two rows or 1 1/2 columns in thickness.  Because it was hard to distinguish the outline from the fill tones in both leaves and flowers in the photo, details may be inconsistent.  Some small unusual bits of foliage in the upper portion were hard to identify and therefore to represent: leaves? buds?  I added center-vein details to small leaves.  Perhaps most controversially, I removed the heavy foot device leaving the motif floating, though this is rarely seen in shawl motifs.
With the benefit of some experience weaving these designs, I should examine the design for unimportant, difficult-to-weave details (necessitating an extra weft bobbin for 1 or 2 grid units, for example).   Where awkward or inefficient weaving details were encountered, it was usually my “improvements” that were responsible.
Once all the transcribing and editing work has been done, it is important to remember it is all based on the front view.  Flip the entire design horizontally, using the “Brush” tool, to obtain the weaving-side view.  Name each colour used with a short, distinctive combination of letters.  In the talim system, the numbers of grid units (“nals”) and the relevant colour are combined in single, shorthand symbols.  “Set Origin” to count the rows and grid units from the bottom left corner.  “Generate Text Summary”.  Copy the text summary file to a word-processing program and give it a clear, roomy page layout.  Number the pages.

a path strewn with flowers

•10/03/2014 • Leave a Comment

a path strewn with flowers

The latest photo shows the progress of my weaving up to about line 240 of the talim text, and now that I have assembled the whole draft diagram, I know it comes in at under 400 lines altogether.  At line 280 now, the lines are getting shorter, not as many steps, and faster to weave.  Also I’m getting more practised and less conscious of each individual line and step.  As new details of the design open up, I alternate between aha! moments and peering at the diagram to see what’s going on.
As the cloth doubles back around the front beam, the window is closing on opportunities to view and photograph the front side, shifting the balance from confidence in my weaving so far, to the longed-for revelation of first seeing the whole piece unobstructed, off the loom.

a journey of 1000 miles…

•03/03/2014 • 1 Comment
first 156 talim lines of weaving

first 156 talim lines of weaving

beginning lines

beginning lines

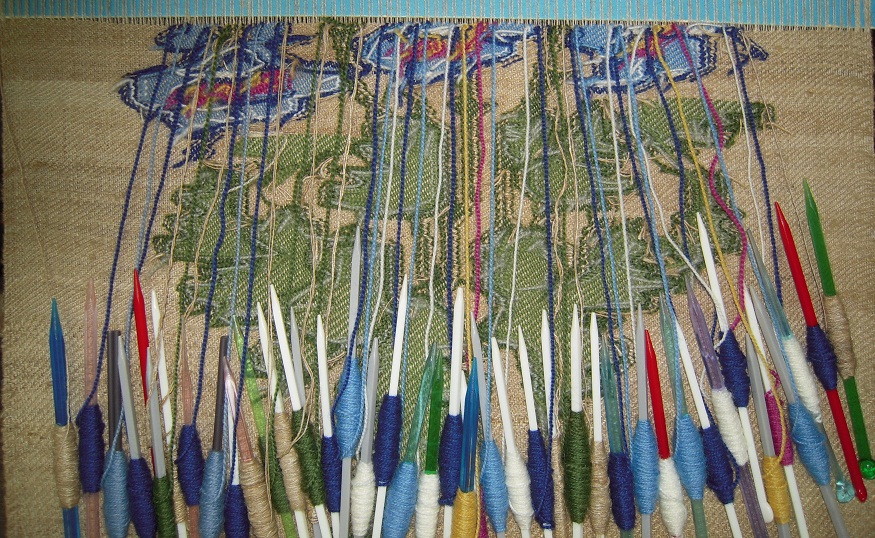

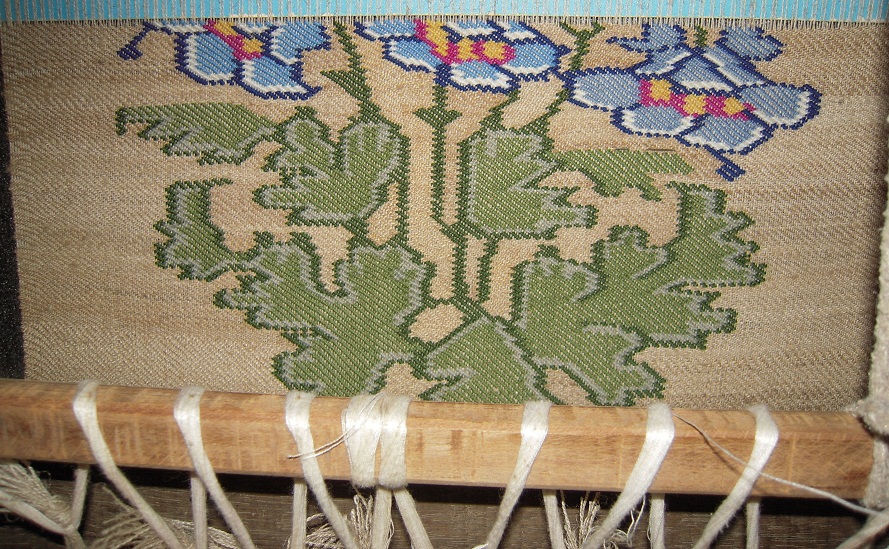

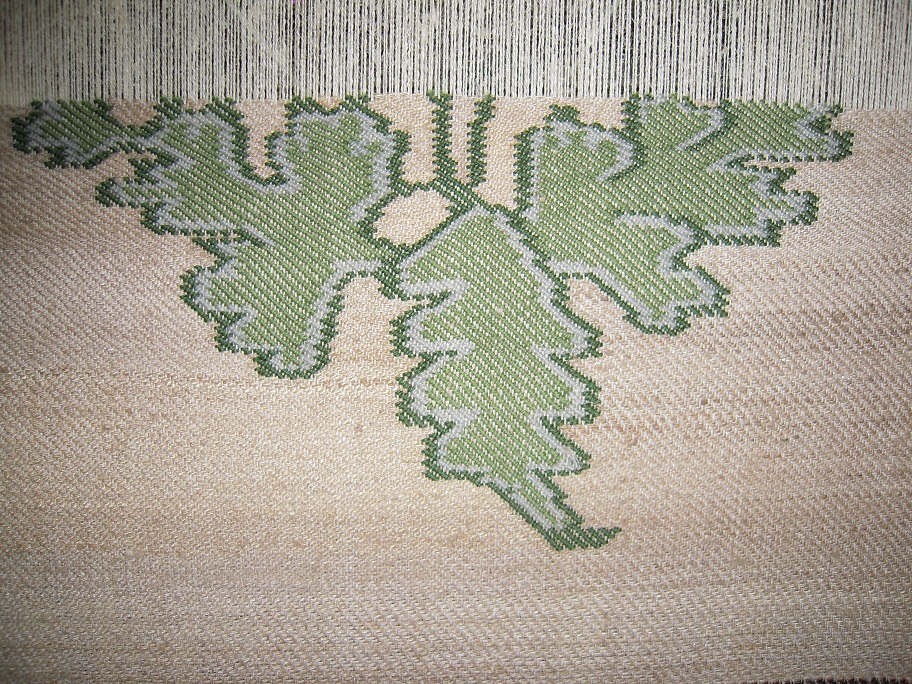

The photos show the current stage of weaving a sample of my 17th-century-shawl-motif project, along with an earlier view of the front side, face down on the loom, that will become more and more obstructed as the cloth advances round the front beam.  Increasingly, I’ll only be able to catch sidelong glances of the front, with the help of a small mirror, to check for obvious errors.  It makes for that much more of an “unveiling” when I can take it off the loom.

weaving reverse side up

weaving reverse side up

I’m using a four-shaft countermarche loom at Tasara, with handspun 2-ply linen-mix warp set at 30 ends per inch, in a 15-dent reed.  The background weft is handspun raw silk singles, while the assorted colours are Ellen’s leftovers of merino wool 2-ply I brought with me.  The weaving is progressing steadily – following row-by-row, step-by-step instructions means there’s never any doubt about what to do next.  Because of the slow pace and delicate handling, accidents and breakages are minimal.
The biggest problem has been keeping ahead of the weaving itself with my computer-generated drafting and instructions.  I had worked individually on the eleven component blossoms of the motif, but even now haven’t compiled them all in one complete diagram.  As I go about it, I keep discovering inconsistencies, missing bits of in-fill, things I want to change, reasons to go back and revise the very next page of instructions from the one I’m presently weaving.  I’ll write a more thorough piece about this design-drafting experience, from what I thought was a perfectly readable photograph of the antique fabric.
The photos show my position at line 156, but I’m currently sitting at line 188 of a text projected to be about 400 lines in all, literally in the thick of things, looking forward to the design tapering off at the top, just as it expanded getting established at the bottom.  I have about three weeks in hand to finish, regular afternoon sessions until the mosquitoes invade at dusk – at this point I’m not planning any days off.  Stay tuned.

Anarchism, not a dirty word

•24/02/2014 • Leave a Comment

…though “anarchy” is often used as a crude synonym for “chaos”, and together as a kind of one-two-punch description for the most-feared state of things that might result.  The word has clear linguistic roots in Greek, to describe various forms of government such as “monarchy”, “oligarchy”, and “patriarchy”, and the prefix “an-” means “without”.  Anarchism is a political philosophy that developed in the late 19th and early 20th centuries, producing several diverse theorists and short-lived social experiments, the last of which was destroyed by its erstwhile allies the more power-hungry Communists in the Spanish Civil War.  Anarchism seeks to organize society with a bare minimum of governmental structures, relying on direct citizen participation to take decisions that the community collectively requires.  Frequent referenda and ad hoc committees are its most obvious tools, and it probably works best in small communities where there is a relationship of trust and goodwill among neighbours.  Delegating decision-making power in advance to representatives, no matter how they are chosen, and seeking enforcement from some distant institutional authority, are not available options.  Ironically, there is left-wing anarchism which assumes neighbours will freely cooperate for everyone’s benefit, and right-wing anarchism or libertarianism, which draws opportunists simply because of the lack of institutional control on an individual’s actions.  Disappointingly, anarchism is probably a utopian philosophy, attractive but unrealistic.  We have come to assume that it is human nature, validated in theory by Darwinism, and coached incessantly in practice by capitalism, to relate to our neighbours competitively, not cooperatively.  Equitable distribution and motivation by selfishness are seen to be at odds – why revolutionary Marxism could never out-grow its interim stage of totalitarian “dictatorship of the proletariat” to coexist side by side with its non-Marxian neighbours in the world economy, without close control and protective barriers.
National elections aren’t due in India until April – May, but already public discourse, in the media at least, has been gripped by election fever, due to the sudden emergence in state assembly elections last December of the Aam Aadmi (“common man”) Party in the capital, Delhi.  Begun as an anti-corruption protest movement, against a huge accumulation of scandalous political cronyism and public cynicism, the AAP found itself elected in 28 out of 70 constituencies, and formed a minority state government with the support of the decimated, incumbent Congress Party.  Unprepared as anyone for its own success, the AAP is scrambling to extend its momentum nationwide.
The broad-based, secular Congress Party, has coasted with gradually-diminishing success over the decades on its association with the independence movement in colonial times.  Jawaharlal Nehru, one of the original freedom fighters, carried India forward into independence with true statesmanship and vision.  His daughter Indira Gandhi was first to inherit the mantle of leadership and proved herself a strong politician.  Since her assassination, it seems that a sentiment of entitlement has repeatedly trumped a search for new talent, as the party leadership passed to her son, the ill-fated Rajiv Gandhi, then his widow Sonia, and now, thirty years on, it looks to be his son Rahul.  Governing a diverse, contentious polity like India, is obviously a huge challenge, and behind the reassuring dynastic face of the Congress Party in government lurk the many entrenched ministerial and bureaucratic administrators, who seem to represent power for its own sake, rather than a guiding political vision.  Any government too long in incumbency accumulates suspicions of favouritism and abuse of its connections, requiring if only on principle “a new broom to sweep clean”.  Implausibly, Rahul claims to be an outsider, a reluctant Prime-Ministerial candidate, but the next moment engages in “seat-sharing” alliances with regional political bosses.
The Bharatiya Janata Party, with its high-profile Prime Ministerial candidate Narendra Modi, was widely expected to definitively overtake the declining Congress-led coalition, until the advent of the AAP.  But the socially and fiscally conservative BJP is too-closely identified with the majority Hindu community to be supported whole-heartedly by secular and liberal moderates.  The entry of the AAP has suddenly offered a fresh alternative for voters to express their disapproval of the Congress Party’s baggage of controversies and insider-trading.
For this Canadian observer, the parallels with the trajectories of Canada’s political parties are remarkable and instructive.  The centerist Liberal Party, for long the “natural governing party” under its Nehru-like Prime Minister Pierre Trudeau and his more down-to-earth successor Jean Chretien, lost its momentum under businessman Paul Martin Jr., and failed repeatedly to re-establish an intellectual kind of leadership under environmentalist Stephane Dion and Harvard professor Michael Ignatieff.  It currently sits third in number of MP’s.  The moderate-right Progressive Conservative Party, frustrated at being too long the Opposition, fragmented and re-made itself, ultimately dropped the “Progressive” qualifier, and took on a more socially and fiscally right-wing, western-Canadian, and pro-U.S. character.  In spite of the void left by the Liberals, the Conservatives under stolid, Modi-like Stephen Harper struggled to get elected in the more cosmopolitan urban areas, where his conservative values are not representative.
Twenty years earlier, in a provincial legislature election in Ontario, my province with the biggest population, urban centres, and industrial base, for the first time the moderate-left New Democratic Party was elected to govern.  Not a new party, and with its roots nationally and provincially in representing unionized labour, it had always placed third but under the earlier leadership of the charismatic Tommy Douglas is credited with establishing Canada’s publicly-funded healthcare system.  In Ontario, with voters in a mood to try something new in economically difficult times, the NDP were elected.  No one could have been more surprised or less prepared, and mistakes were made, often due to the inexperience of first-time members of the legislature.  To reduce a mounting public-sector deficit, Premier Bob Rae imposed notorious “social contract” legislation, cutting teachers’ salaries with unpaid holidays.  After one term, the NDP returned to third-party status, and Bob Rae went on to the national parliament… as a Liberal.
My conclusions are two-fold: first, that to call the AAP “anarchist” in an accusatory tone is misleading, and for them to accept that label is courageous, well-meant, and honest in the sense that they are trying to maintain the closest possible contact with their electors’ concerns in an era when new social media provide opportunities for open and immediate consultation.  How far that openness will carry in the business of effective government, is another matter, and can’t be quickly proven.  But by another measure, the few months before Lok Sabha elections are a long time: plenty of time in which the AAP can accumulate enough overly enthusiastic blunders and unfulfilled initiatives, to eclipse the bright light of their appearance two months ago.
P.S., 15 Feb14: The headline today is that the Delhi AAP government has resigned over its failure to introduce its Jan Lokpal Bill – to establish a kind of parliamentary ombudsman – into the state assembly (defeated by a vote of all non-AAP parties 42 to 28, including their short-lived Congress Party support), in a deadlock prompted by the Lieutenant-Governor over whether Delhi’s state government could introduce legislation without a go-ahead from the national government.  It remains to be seen if the AAP will be able to retain its anti-corruption support in national and/or new Delhi elections, or whether people will see the AAP as too much of a long shot and turn to the BJP.

Weavers’ tricks of the trade

•12/02/2014 • Leave a Comment

I’ve almost completed drafting the 17th-century Kashmir shawl motif, for which I propose to weave a prototype, and so to vary my routine and not lose time waiting for one or the other phase to be ready to continue, I’ve started to prepare the loom I’ll be using, an ancient-looking, locally-built barn loom with a four shaft, countermarche action.  Under the guidance of the redoubtable Vasudevan at Tasara Centre for Creative Weaving, I’ve already been shown a couple of arcane weavers’ tricks of the trade, in the course of measuring off my warp and bringing it to the loom.  Yesterday my head hurt, and today it’s my fingers.

joining new warp to old

joining new warp to old

The easier thing to describe and illustrate is how to graft a new warp onto a harness and reed that still carry the remnant of the previous warp.  Assuming that the threading of the two warps are similar enough in number of shafts and sequence, and the accuracy of the previous threading was proved by the now-absent yardage, the claim is that it’s easier to attach the new warp to the old, than to thread the new one afresh.
To set up, you determine the number and placement of the new warp threads in relation to the old, wind the new warp on the back beam and bring the cross of the new warp threads up to the back of the harness.  For the old warp threads, recover or re-create the cross just behind the harness – you now have two sets of threads each sorted over-one-under-one as a check on broken or missing threads or other mistakes.  The trick is to join them up – it sounds like a lot of knot-tying, but the joining is a little easier than that.
Position yourself between the two warps.  Working from the far side of the warp to the near, gather a convenient bunch of both warp ends and knot them loosely together.  Vasudevan ties this knot to a band around his waist, so that when he leans away the warps are taut and easy to pick off the crosses, and when he leans in the pair of warps he’s selected to join are more slack – he calls it the “backstrap-weaving” feature.
The trick to joining the two warp threads is this: pinch the two together under tension with your harness-side hand and cut the ends off the knot leaving free ends about 3 cm. long.  With your back-beam hand roll the two free ends tightly together in one direction, and then roll them in the opposite direction around the new warp thread, in a rudimentary effort to ply them together.  When you release your grip, the remaining tension between the old and new threads should be enough to hold the twisted ends in place.  I can say that beginner’s frustration does yield to practice, and it becomes a simple, repetitive routine, requiring very little oversight.  In India’s declining handloom industry, Vasudevan says there were professional loom-dressers that did this particular task all day, thousands of ends, working strictly by touch.
The proof of this method is being able to delicately drag and coax the new warp ends through the heddle eyes and the dents of the reed, with a minimum number coming detached and requiring threading in the usual way.  Vasudevan’s brother Balakrishnan and I worked on this, advancing the warp from back beam to front, not removing the cross, and maintaining some tension, until the row of joins was just behind the nearest shaft, then swung each shaft in turn over the joins.  Only 20 or 30 of the joins didn’t make it through, and by locating the position of each loose end in the cross, it was easily matched with the empty heddle.  We gave up on the reed, which was covered in rust after sitting idle in the open air for two years, but in the course of threading a new reed in the usual way, I was able to verify the threading of the shafts from edge to edge.  Still, it was easier than a completely new threading, and to a lesser degree, faster.
The thing that made my head hurt yesterday, for being challenged to get it right without exactly understanding what I was doing, is also a lot harder to describe in words.  It’s a series of finger manipulations that allow you to quickly measure off a warp with a large number of ends, while still being able to organize it with a one-over-one-under cross.

#1  X's are warp threads; path is right index finger

#1 X’s are warp threads; path is right index finger

I started with twenty bobbins of warp thread, to prepare a warp of 400 ends.  The first step was to feed the threads through a paddle in a column of pairs.  The 20 ends were tied onto a peg on the warping mill where the front beam of the warp would be, closely followed by two other pegs where the cross would be formed.  Now, holding the paddle in my left hand in order to wind on the warp in a counterclockwise direction, with my right index finger I trace the path shown in illustration #1, running my fingertip over the surface of the paddle, and snagging all 20 threads in the order the path produces.  At the end of that step, the 10 threads on each side of my index finger are transfered to the first peg of the cross.  Next, I run my right index finger straight up the middle of the paddle between the pairs of threads, and similarly transfer the 10 threads on each side onto the second peg of the cross.  From there, I proceed to wind on the length of the warp, loop all threads together around two pegs at the back-beam-end of the warp for a 20 by 20 cross, and double back.  Arriving back at the front cross, I essentially perform both the previous manipulations at the same time: with my right index finger I run straight up the middle between the pairs, and my thumb follows behind, tracing the meandering path in illustration #2.

#2 red path is right index finger; white path is thumb following

#2 red path is right index finger; white path is thumb following

Singlehandedly, so to speak, the cross has been created for the second set of 20 threads.  The arrangement of threads around my index finger is transferred onto the second – the back beam side – peg, and the arrangement of threads around my thumb is transferred onto the first – the front side of the cross – peg.  A quick turn around the front beam end peg, and I’m ready to lay down another 40 threads, for a warp of 400 in 10 back-and-forth passes.  Before I had really gotten used to it, it was done.

weaving magic

•06/11/2013 • Leave a Comment
17th-century patka at Bharat Kala Bhavan

17th-century patka at Bharat Kala Bhavan

My studies of the Kashmir shawl have been blessed by an abundance of visual resources in the many lavish, large-format picturebooks – not to diminish the authors’ texts and ideas.  Because of the interest in dating individual shawls, often from little more than their placement within the design history, the pictures are usually arranged to illustrate the evolution of style from early botanical naturalism to the irresistible influences of foreign markets, technological changes, and fashion’s craving for newness.  As a tapestryweaver I respond most to the early painstaking representations of real flowers, and the recognizable bouquets, sprigs, and meandering vines they directly inspired.
There is a shawl that I have found extraordinarily elegant in the restraint of its composition and the naturalism of its imagery, that I have kept returning to, to analyse and reconstruct the three basic pattern repeats that are intricate in themselves but simply-arranged to form the whole design.
It’s described as a patka, a narrow length of shawlweaving worn as a waistband, dated variously as from early or late in the 17th century, from which few fragments of fragile pashmina fabric survive, let alone such an intact and beautiful example.  Today it resides in the collections of Bharat Kala Bhavan, Benares Hindu University at Varanasi, and the clearest published photo I have of it is from “Pashmina: The Kashmir Shawl and Beyond” by Janet Rizvi with Monisha Ahmed, Marg Publications, Mumbai, 2009, p. 76, photo by Dilip Kumar.  As a gardener, I’m drawn to the fact that the floral subject of this design is the columbine (aquilegia sp.), just like ones which have colonized the roadside ditch outside my rural Canadian home.  The Mughals were connoisseurs and patrons of flower gardens – no surprise that as the patrons of shawlweaving they would appreciate a recognizable and flattering portrait.
component designs

The patka as a whole demonstrates a straightforward use of the principle that the overall composition can be efficiently archived and reproduced by the weaver simply repeating pattern units of a manageable size.  Three pattern units are all that were required: the main motif a boteh composed of blossoms and leaves repeated across the palla end-panels, enclosed by a band design above and below, and a side-border hashia design running the length of all, with a plain central field.
band pattern in repeathashia in repeatOne of my earliest reconstructions leading to a woven sample was of the band design – the size of the repeat is 34 lines of talim instructions (68 wefts) long by 81 nals (324 warps) wide.  The hashia design obviously has different proportions and is more elaborate, 42 nals (164 warps) wide, by 284 lines of talim (568 wefts) long in one complete repeat, but the second half of the unit is the reverse of the first half, so “only” 142 lines of talim are required – for the second half each talim line can just be read in reverse.

original - brick grid - square grid



Now I want to tackle the project of drafting the entire boteh motif, leading to a woven sample copy.  Up until now I have drafted one selected blossom and woven samples to illustrate another key point in the process, whether a line of talim instructions should be followed for two, or four, weft picks.  This draft will contribute to the overall draft, as I follow a process I developed before, of assembling the drafts of individually-worked-out details.  The one blossom covers about 30 nals (120 warps) in 50 talim lines (100 wefts), projecting the size of the complete motif to be about 90 nals (360 warps) wide in 400 lines (800 wefts) of talim.
Tasara Feb 2014This winter 2013-14, I hope to be visiting India while I undertake the project, with a loom set aside for me at Tasara Centre for Creative Weaving, in Calicut/Kozhikode, and I will be available for consultation and travel.  Contact me by e-mail.
With the completion of this boteh design draft and revision of the two border designs in the light of now having a clearer published photo, an accurate modern reproduction of the whole ensemble can be attempted, of this rare and beautiful 400-year-old precedent, using traditional talim and weaving techniques, by traditional weavers.  I would be pleased to provide the talim.

“Science Experiment”

•01/11/2013 • Leave a Comment
Science Experiment

Science Experiment

I’m often drawn to the narrative potential of tapestry – figures and objects interconnected in ways that can be linear or associative, sequential or simultaneous, in one panel or a series of scenes.  Another story-telling format evoking the same kind of historical respect is the tryptich, an older and more high-minded version of the three-panel comic strip – or “cartoon”, which brings us back to the name for the tapestryweaver’s full-scale design drawing.
The Latin inscription is another badge of historical authenticity, a subject I was cornered into studying for three years in high school, almost 50 years ago.  The words “Neglegentia confidite” are almost recognizeable from their English derivatives “negligence” and “confide”, and are intended to mean “Put your faith in carelessness”, or not so literally, “Know that sooner or later you’re going to screw up.”

Welcome to Ecuador

•21/07/2013 • Leave a Comment

Otavalo market day 3Fascinating to hear of all the interest in seeking asylum or retirement to Ecuador lately.  Following on my last posting, a recommendation of some of my favourite travel books, there is one concerning Ecuador that springs to mind: “The Farm on the River of Emeralds” by Moritz Thomsen (Vintage Departures / Random House edition, New York, 1989).  It paints an up-close-and-personal picture of the author’s determination to build a rural homestead in the coastal jungle province of Esmeraldas, northern Ecuador.  Thomsen (1915 – 1991), an American Peace Corps veteran, wrote with sensitivity, insight, and engagement, about his ambitions and disappointments in trying to make a life for his 53-year-old self, and share the realities of the rural-poor folk around him.  The writer Wallace Stegner called it “…a heart-breaking book about good intentions and idealism crashing against poverty and cultural differences…bound to be read with fascination, amusement, and something close to horror.”  Dating from his experiences in the 1970’s, it’s not that bad by today’s standards – no looming disasters, invasive development, or shifting battle-lines, just the average rural challenges of the ever-encroaching jungle and the traps of poverty, in a hot-house environment.
I haven’t read his earlier memoir, “Living Poor: A Peace Corps Chronicle”, also set in Ecuador, but I came across a wonderful metaphor he constructed that could be the book’s epigraph: “Living poor,” he wrote, “is like being sentenced to exist in a stormy sea in a battered canoe, requiring all your strength simply to keep afloat; there is never any question of reaching a destination. True poverty is a state of perpetual crisis, and one wave just a little bigger or coming from an unexpected direction can and usually does wreck things.”  Then there is a sequel to his experiences in Ecuador, “The Saddest Pleasure” (from “travel is the saddest of the pleasures”, a line by Paul Theroux), even more intensely self-reflective.
Otavalo market day 1 In 1976, I travelled for two and a half months in the Andean countries of South America, Colombia, Ecuador, Peru, and Bolivia.  I was still pretty naive, but by this time I had already taken a year-long sojourn to Europe and overland to India, in 1972-73.  Come to think of it, I am still pretty naive, travel has done little to change that, and the sense I make of “the saddest pleasure” is that it is entirely pleasurable except that all those pleasures are eventually left behind.  We are all travellers, threading our ways through the tapestry of this world.  Anyway.Otavalo market day 2
Overland along the backbone of South America meant following the route of the Pan-American Highway with few alternatives, so very often it meant falling in step with other travellers, stopping or moving-on by consensus, partnerships forming and re-forming due to coincidences, pick-up relationships, information-sharing.  The cultural environment was a lot more familiar, but more raw and dangerous than west or south Asia – to me it approximated the “Wild West” of open landscapes and the rough imposition of modernizing habits and developments on defensive indigenous peoples.  On an earlier visit, a Colombian friend had pointed to the juxtaposition in a village square of a church facade and a billboard advertising a soda-pop brand, calling them the twin oppressors of his culture.  Maybe I am just naive about my own role in all this, not one of the shock troops of western development, but a camp-follower.  Maybe there is no such thing as “asylum”, retirement, or pleasure without reflection.

Book Ends of Empire

•02/04/2013 • Leave a Comment

For a long time, I have been a fan of the genre known as “travel literature”, escapist yes, not into fantasy or science fiction, but to real places and often backwards in time.  More recently, I’ve thought of posting a review of some of my favourite travel books, adventures to make the reader feel more content and grateful to sink into an overstuffed armchair on a long winter evening, pulled up close to a crackling campfire somewhere on the Tibetan plateau.  Who knew that Ian Fleming, originator of the James Bond franchise, had an older brother Peter who made an “undeservedly successful” venture across western China from “Peiping” to Srinagar in the 1930’s, and wrote about it vividly and easily, because it was not the product of imagination or research, but experience?
William Moorcroft, Lahore MuseumThen I realised that several of the books I would turn to first, are connected by more than just genre, acquisition, and enjoyment.  As a student of the shawlweaving tradition of Kashmir, I’ve had quoted to me from every book on that subject the observations of William Moorcroft, an early 19th-century British colonialist who made his way into Central Asia, supposedly in search of breeding stock to improve the quality of cavalry horses in subtropical, lowland India.  At the time when the East India Company, based in Calcutta, was extending its control over the sub-continent, Moorcroft paused in Srinagar to study the extensive and already famous shawl industry, in the middle of an epic six-year journey from which he never returned.
So: I was browsing in a bookshop for a then-recently-reviewed book about Afghanistan by Karl Meyer, and came up with an earlier work (“Tournament of Shadows: The Great Game and the Race for Empire in Asia” by Karl Meyer and Shareen Brysac, Abacus/Little, Brown and Company (UK), 2001), a colourful and fast-paced history, of rather the “great man” variety, that opens with… William Moorcroft, and closes 600 pages later in mid-20th-century with another chap I keep bumping into, Nicholas Roerich.
I wanted to know all I could by and about Moorcroft, not only in the hope of discovering some overlooked detail of his reports on shawlweaving that might only be useful to a specialist, but also because he was one of the earliest European documentarians treading an unspoiled path, and it’s a moot question whether he was officially a British spy.  I finally found a reprint of his two-volume “Travels” (“Travels in the Himalayan Provinces of Hindustan and the Panjab, from 1819 to 1825” by William Moorcroft and George Trebeck, Oxford University Press, Karachi, 1979), originally edited from his papers by H. H. Wilson in 1841.  This was in a chaotic little bookshop in Faletti’s Hotel, Lahore, where my initial inquiry was met with a negative, but the elderly proprietor cleared a space and sat me down to his self-prepared tea.  As my eyes wandered, I discovered the books in a stack practically at my elbow – a test of my kismet.
In the early going Moorcroft’s account, always filled with acute observation and lived experience,  seems pedestrian in more ways than one.  Following traditional trails through hitherto unmapped territory he is at pains to record such things as distance travelled, on which bank of the river, and how many tributaries crossed.  But deep in the second volume there are satisfyingly dramatic days as Moorcroft escapes imminent robbery and murder by seeking refuge in the home of a religious elder and appealing for the traditional protection of pashtunwali.  In the end it was a fever that claimed him.
Alberto Manguel once said that anyone who hasn’t already read Rudyard Kipling’s “Kim” (many editions) is in for a treat – true for no one more than me.  An adventure novel first published in 1901, its old-fashioned romanticism and over-the-top local colour is easily as much fun as the first, young Harry Potter film (which I first saw on late-night TV one February, huddled under my blanket in a drafty, down-market Paharganj hotel room).  But the connection here is that Kipling must have been familiar with Moorcroft’s “Travels”, if only for the intelligencer’s covert trick of counting paces along the trail to map his route.
The last word on Moorcroft is an in-depth biography (“Beyond Bokhara: The Life of William Moorcroft, Asian Explorer and Pioneer Veterinary Surgeon” by Garry Alder, Century Publishing, London, 1985), long out-of-print.  Moorcroft’s early years were as accomplishful as his later travels: born in 1767, he studied medicine, then trained in France (at the time of the revolution) in veterinary medicine.  Specializing in the treatment of horses, he set up a thriving practice catering to the carriage trade in London in 1792, but eventually accepted a post with the East India Company to manage their horse-breeding program in Bengal in 1808.  Restless and independent-minded, he was an evident patriot but unpopular with his Company superiors, so whether he was on the payroll as a spy, or contributed his intelligence-gathering as a loyal subject, seems a fine point.  During his travels, his medical skills usually made him a welcome guest.  Garry Alder for his part must have been a true admirer, retracing Moorcroft’s explorations, and reconstructing his own manuscript lost along the way.  In my own small but persistent way, I eventually located a copy of “Beyond Bokhara” at the Toronto Reference Library.  As I paged through it to make a complete photocopy, I had the distinct sense that, acquired when it was new 20 years earlier, it had, sadly, never been opened.
Nicholas Roerich from american-buddha.comAt the other end of “Tournament of Shadows”, I’m prompted to recommend Nicholas Roerich not because his book is as rivetting, but because he was as willful and eccentric in his accomplishments and travels.  Russian-born of Scandanavian ancestry, he is best-remembered as a painter and stage-designer, recognized early for collaborating with Diaghilev on ballet productions by Borodin and Stravinsky.  A political moderate and dedicated cultural preservationist, he emigrated from Russia after the revolution, moving to London and New York in the early 1920’s, touring, exhibiting, working on various causes and projects, enjoying celebrity and friendships with notables of the time, nominated three times for the Nobel Peace Prize.  A Theosophist, he embarked between 1925 – 1928 on a trek through Central Asia and western China in search of Shambala, enduring great hardship barred at the frontier from entry into Tibet, and subject to suspicion as a possible spy.  He recorded his experiences in “Altai-Himalaya, A Travel Diary” (Adventures Unlimited Press; Kempton, Illinois, 2001).  His final years were spent at Naggar in the Kulu Valley, northern India, where he died in 1947.  In 1985, my late partner Ellen and I spent several rainy days at a former royal hunting lodge converted to a government tourist guest-house, perched on the side of the valley overlooking Naggar and Roerich’s home, now preserved as a museum.  Some 165 years earlier, William Moorcroft passed by up the valley and noted the hunting lodge, early on the journey to his destiny.
